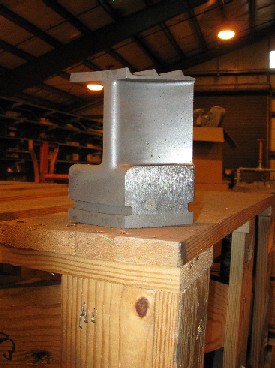

Turbine blade sets (SOLD)
Details
These blade sets have never been used. They were originally purchased as spares and have been sitting in stock for approximately 35 years.
All installation hardware is there with the blades.
Left hand and right hand Stationary Rows are available, however, AEP is short one or two rows for a complete turbine.
The blade sets are contained in six wooden boxes set on pallets.
AEP can assist with loading Buyer's truck.
The dimensions of each box are 42'' x 42'' x 38'' tall. Each box is estimated to weigh approximately 2000 lbs. (this is just a guess).
Blade sets are being sold ''as is, where is''.
The material makeup of the blades varies: For Rows 1 through 5 see the ''Attachment 1'' below.
The remaining rows are equivalent to ASTM spec. A565-66 Grade 616HT.
See ''Attachment 2'' below for technical data about the turbine.
Following are part numbers from the Brown Boveri parts catalog:
Row 2, Stationary, Left Hand, D211753P0001
Row 3, Stationary, Left Hand, D211753P0002
Row 4, Stationary, Left Hand, D211753P0003
Row 5, Stationary, Left Hand, D211648P0001
Row 6, Stationary, Left Hand, D211648P0002
Row 7, Stationary, Left Hand, D211648P0003
Row 8, Stationary, Left Hand, D211648P0004
Row 9, Stationary, Left Hand, D211648P0005
Row 10, Stationary, Left Hand, D211648P0006
Row 11, Stationary, Left Hand, D211754P0001
Row 12, Stationary, Left Hand, D211755P0001
Row 13, Stationary, Left Hand, D211755P0002
Row 2, Stationary, Right Hand, D211832P0001
Row 3, Stationary, Right Hand, D211832P0002
Row 4, Stationary, Right Hand, D211832P0003
Row 5, Stationary, Right Hand, D211833P0001
Row 6, Stationary, Right Hand, D211833P0002
Row 7, Stationary, Right Hand, D211833P0003
Row 8, Stationary, Right Hand, D211833P0004
Row 9, Stationary, Right Hand, D211833P0005
Row 10, Stationary, Right Hand, D211833P0006
Row 11, Stationary, Right Hand, D211834P0001
Row 12, Stationary, Right Hand, D211835P0001
Row 13, Stationary, Right Hand, D211835P0002
| Row | Stationary, Left Hand (LH) - Description | No. of blades per row |
| 2 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 42 |
| 3 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 42 |
| 4 | BLADE SET, TURBINE, CYLINDER SECT, BLADING | 42 |
| 5 | BLADE SET, TURBINE, CYLINDER SECT, HP | 42 |
| 6 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 42 |
| 7 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 44 |
| 8 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 44 |
| 9 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 44 |
| 10 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 44 |
| 11 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 44 |
| 12 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 32 |
| 13 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 32 |
| Row | Stationary, Right Hand (RH) - Description | No. of blades per row |
| 2 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 42 |
| 3 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 42 |
| 4 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 42 |
| 5 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 42 |
| 6 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 42 |
| 7 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 44 |
| 8 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 44 |
| 9 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 44 |
| 10 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 44 |
| 11 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 44 |
| 12 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 32 |
| 13 | BLADE SET, TURBINE, CYLINDER SECT, BLADING HP | 32 |
| A blade set includes the following: sealing ring halves, closing pieces, locking bolts, | ||
| filler pieces, caulking wire, blade spacers and filling band. | ||
turbine tech data.pdf
Product Photos
